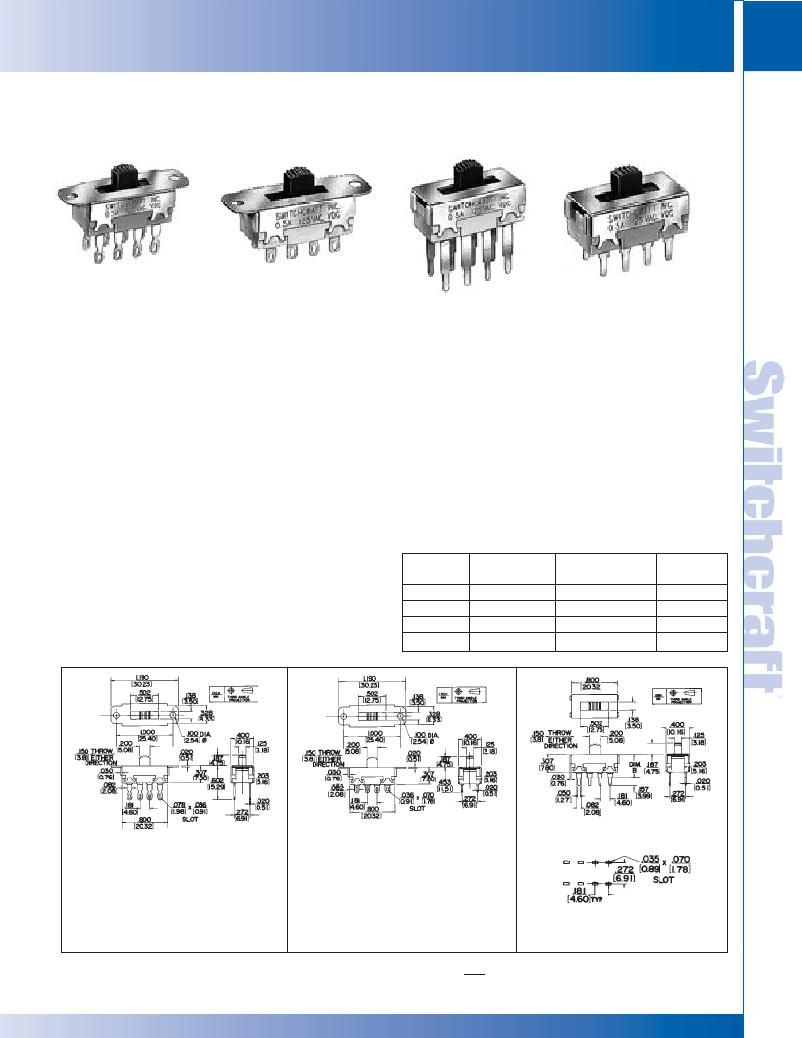

MINIATURE SLIDE SWITCHES – SERIES 56300 AND C56300
SWITCHES
FAX: 773 792-2129
* Please visit the product pages on our website for the most up-to-date product information
MINIATURE SLIDE SWITCHES (continued)
289
56313L1
56313L2
C56313L1
C56313L2
SERIES 56300,C56300 - 3 POSITION
Series 56300 “Tini-Slide” switches provide ultra-reliable
3-position switching. They afford maximum space savings in
military, industrial and consumer applications, such as
instrumentation, test and ground support equipment,
appliances, computers, and control devices.
SPECIFICATIONS
Contact Ratings: 0.5A, 125V AC or DC, non-inductive.
Minimum switch life is 6000 cycles. Resistance after
6000 cycles at rated load is 50 milliohms maximum.
Terminals: Solder Lugs - 56313L1 with wrap around notch;
56313L2 with solder lug. PC - .585" (14.68 mm) “B”
dimension and .364" (9.24 mm) “B” dimension.
Mounting: Mounting ears for mounting to chassis of panels
Dielectric Strength: 1 kV rms @ sea level.
Insulation Resistance: 1 k M ? minimum.
SPECIAL ORDER FEATURES
1. .187" (4.75 mm) high knob is standard; Other heights
available on special order. See page 283.
2. Red and white knobs available.
3. Two mounting variations:
a. Tapped #4-40 holes on mounting ears for machine
screws.
b. Mounting ears with .1" (2.54 mm) diameter holes on
switches with PC terminals.
PART NUMBERS
with screws or rivets (not supplied). Switches with PC
Part
Dimension “B”
terminals have stand-off shoulders for solid PC mount.
Knob: Molded thermoplastic (UL 94HB).
Terminal Board: Molded thermoplastic (UL 94V-0).
Terminals: Copper alloy, silver-plated.
Contact Sliders: Copper alloy.
Temperature Range: -4°F to +158°F (-20°C to +70°C).
Number
56313L1
56313L2
C56313L1
C56313L2
Inch (mm)
-
-
.585(14.85)
.364 (9.24)
Description
DPTT, Locking
DPTT, Locking
DPTT, Locking
DPTT, Locking
Schematic
2-VI
2-VI
2-VI
2-VI
56313L1 & L2
56313L1
56313L2
RECOMMENDED PC BOARD
LAYOUT (Component Side)
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
